My 2-ton paperweight

[jps4jeep]

First off, this will be updated as I remember to take photo’s.  This is not my first SAS, but it is my first SAS on this platform truck as well as first time building it in the manner I am, more on that later.  The general point to this project is to address a number of issues with my truck that I am frankly tired of fixing, specifically the front end.  Also will be addressing a number of areas where the truck simply needs work, the rear springs are very worn and the bushings are kinda junky.

Before specs

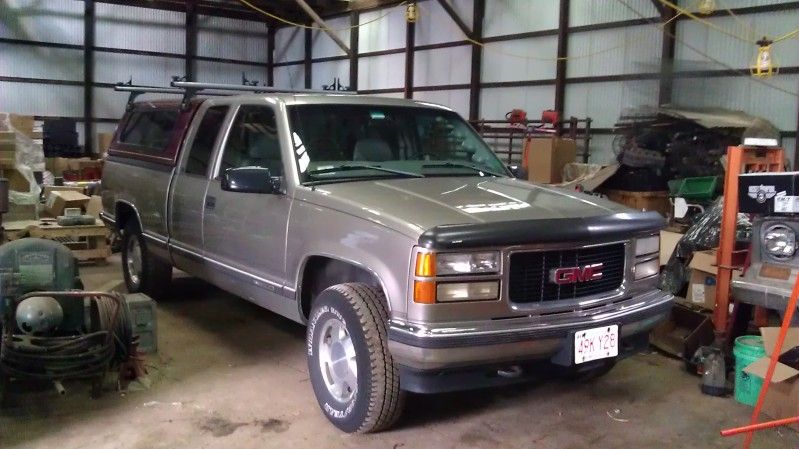

98 gmc 1500
200,000 K miles
5.7, 4l60E
10 bolt rear
Beat to death front end
Junk rear springs.

I have been collecting parts for the better part of a year and a half buying parts. I have 90% of what I need to complete everything.  Why am I doing this, I searched for a truck that I liked and I kept seeing beat to death older dodges with stupid high miles that needed a lot of other work or the prices were just too high for something a little nicer.  This truck was paid for the day I bought it 7 years ago. I honestly really like this platform truck for what ever reason. This truck has never let me down, never left me stranded. I figure if I put $6000 into this truck, I will have the exact truck that I want and will keep for many years to come.  I crunched the numbers and (not including the original purchase price) this is my best economical options to end up with a pretty much new truck the way I want it.

I will be performing this build in three stages.
Stage 1 will address the suspension and axles
Stage 2 will address the power train
Stage 3 will address the body work

Stage 1: SAS front with 78 F250 D44 and 1 ton rear springs with a shackle reversal D60 from same truck.  I am using this particular front axle because it was available and the price could not be beat. I am will be searching for a 78-79 D60 front, but is not priority at this point.

Stage 2: intercooled 5.9L Cummins with NV4500 Trans.  Last year I bought the engine from a 94 2500 2wd with a 2wd nv4500. I might run divorced case, might change the rear out put/ different trans and married case.

Stage 3: Body work, basically stock re-paint as well as new bumpers and a couple custom touches. I already got a set of doors from Big D and I have a line on a tail gate. Other than that, the body is rust free.

End purpose will be a reliable daily driver, occasionally tow rig and very light duty expedition wheeler (weekends on the beaches and dirt roads to secluded hunting/camping.)  Most of the towing will be our 2000K pound camper. I have been towing my jeep with the truck in stock trim for 6 years and has done so successfully. I honestly tow the jeep 9 times a year, a brand new diesel truck would be cool, but in reality not needed.

At this point I will focus on the Stage 1 portion of the build.  If you have any advice or see something that should be pointed out or upgraded, I appreciate the criticism.

[jps4jeep]

Stage 1: Suspension

Front will be radius arms with pan hard bar. I will be running clayton ZJ 6” coils for now, I have a set of dodge 3500 cummins coils that can be swapped in later, but until the Cummins gets swapped in I think it will ride better with these springs.  Links will be 1.5 .25 inside 1.75 .120 with bushings at the axle end and ruff stuff heims for adjustability.  Front shocks are bilstein 5610 (I think) remote res shocks I bought from Tony.  He runs them in the front of his dodge and they ride well so I am hopeful this set up will perform well.  The radius arms will be similar to the TNT XJ/TJ design but will be parallel.  The rear is 1 ton springs with ORD shackle reversal and DIY4x4 stock height shackles.

To address the transfer case, I could swap to an older case with a flanged front out put, I am going to attempt to re-purpose a 2 piece ford ranger rear shaft onto the front of my truck so that I can retain the push button 4wd.

Completely rebuilt the front axle, brakes, u-joints, ball joints, seals etc.. the axles are already geared to 4.11 with 35’s this should be a great ratio. I am looking for the D60 front, but I can not put the Cummins in till 2014 since I need to wait till 15 years after the production date to be exempt from emissions (odbII) according to my contact person at the BWP Transportation Programs, MassDEP.

[jps4jeep]

[jps4jeep]

Parts:

Shocks

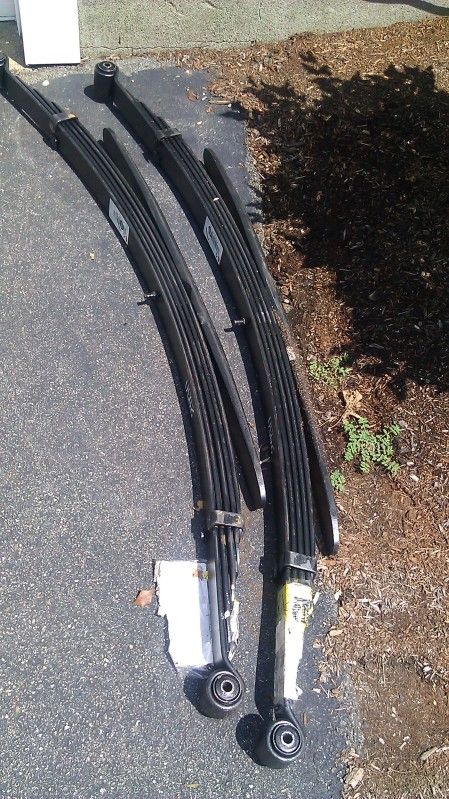

New rear Springs


Rims and tires, 5 rims and tires for a total of $350. Tires are well worn, but they will be fine as rollers and while dialing in the front end. I will probably go with tread-wrights once everything is done.

[jps4jeep]

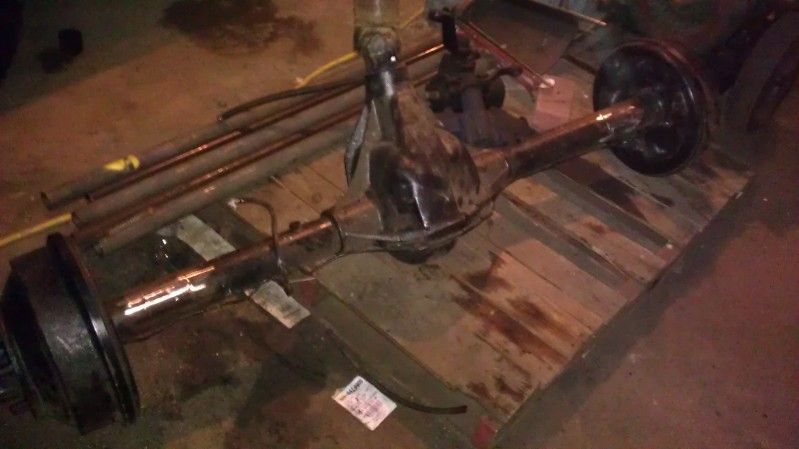

Rear D60 after I cut everything off and cleaned it up.

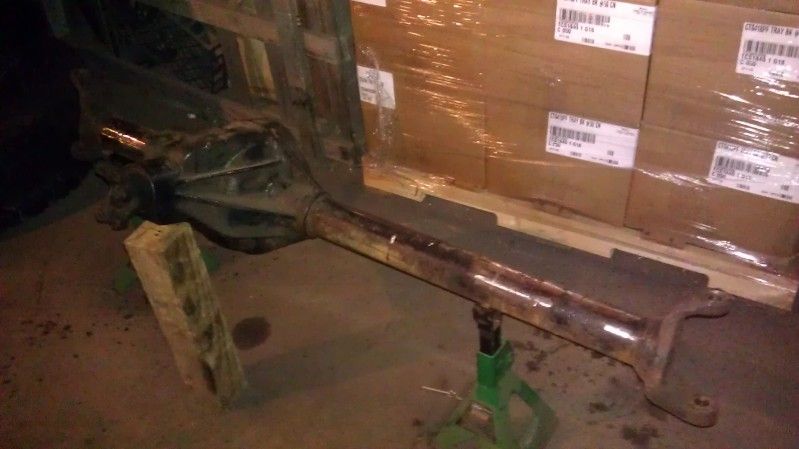

Front D44 all stripped and cleaned up.

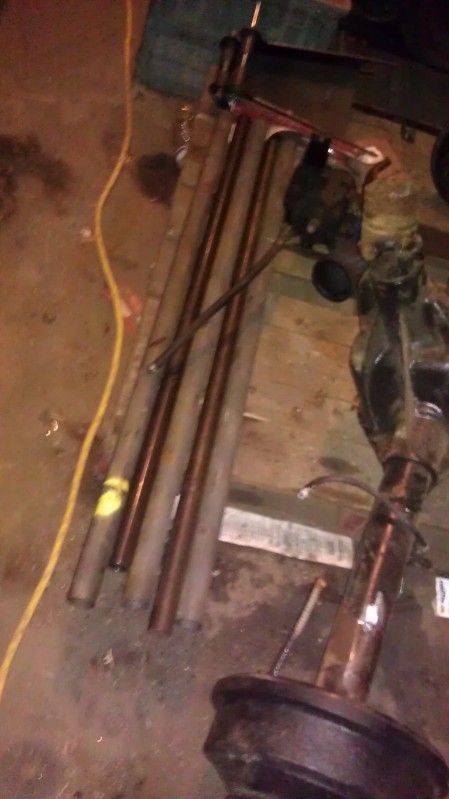

Link Material

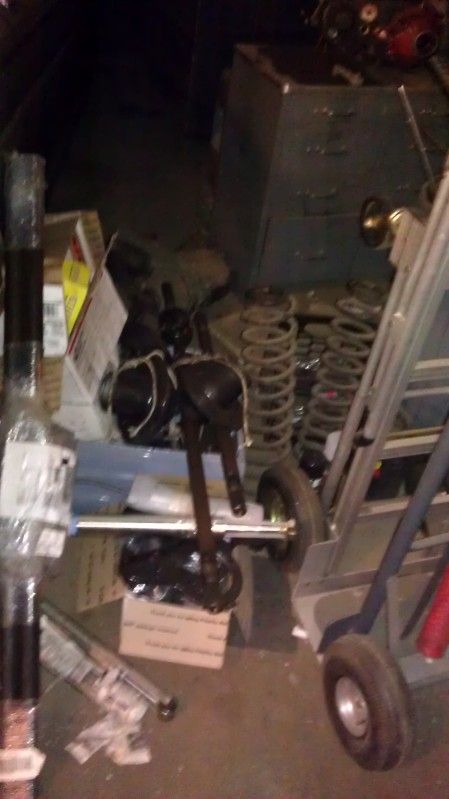

One of the couple pile of parts

[jps4jeep]

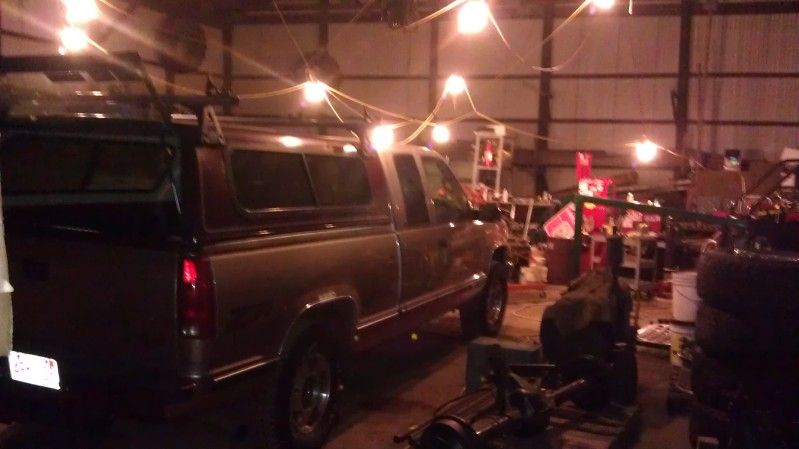

In it's new home for now

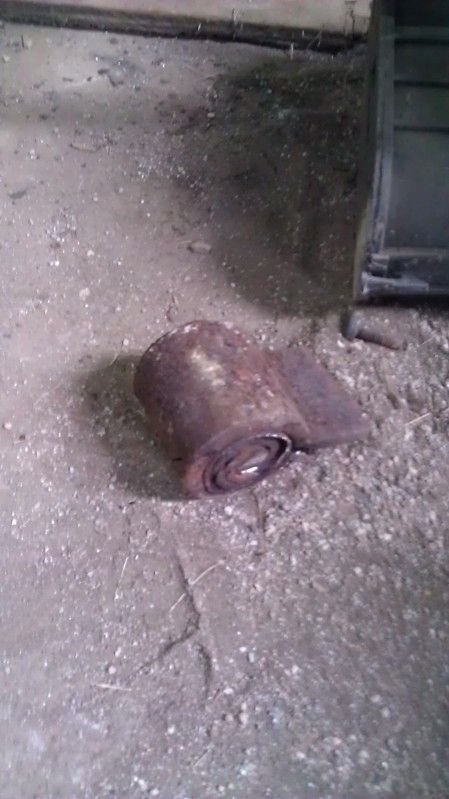

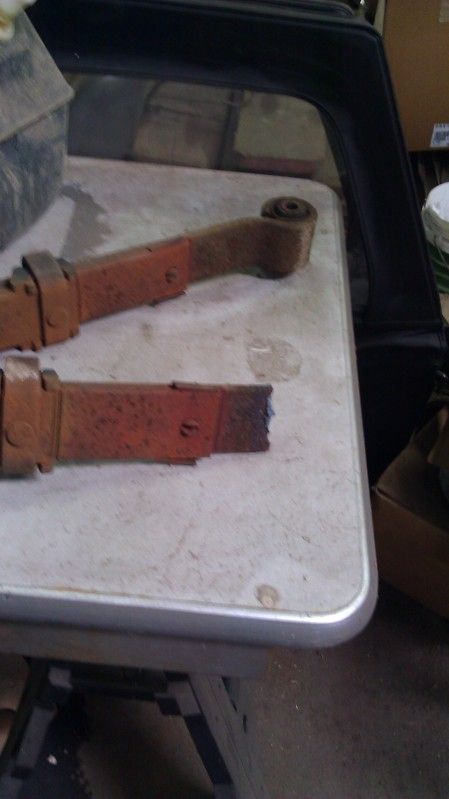

The rear came apart pretty easily until the last bolt I had to pull, completely seized. I was hoping to re-sell my 64" stock 1500 springs, but one had to be sacrificed.

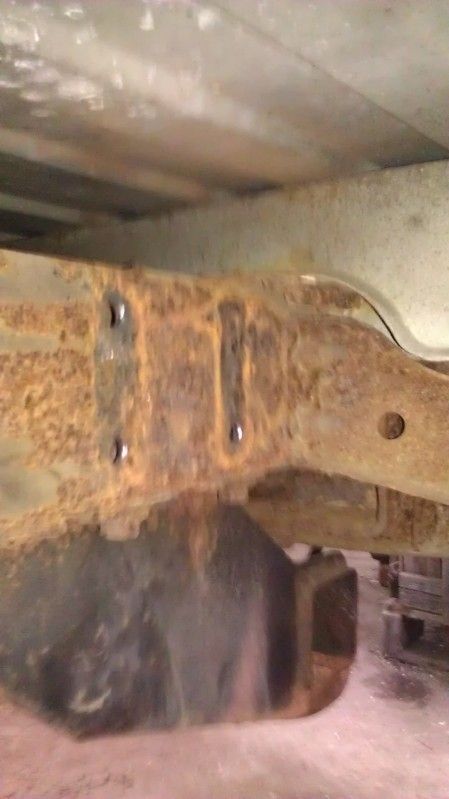

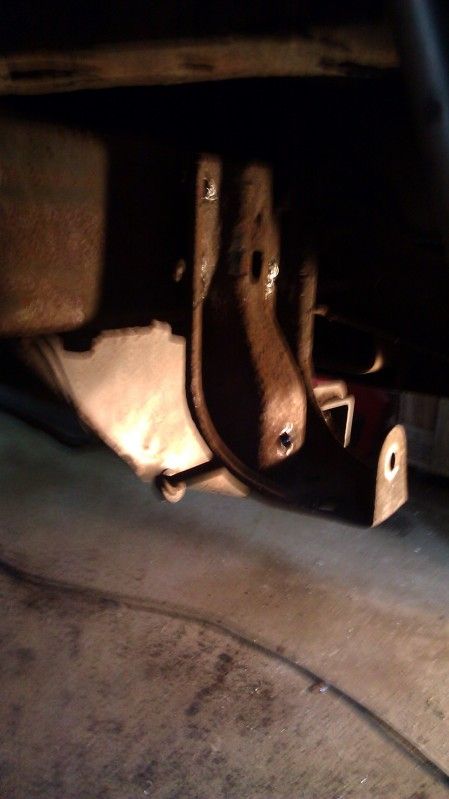

Punching out the stock hangers rivits

[jps4jeep]

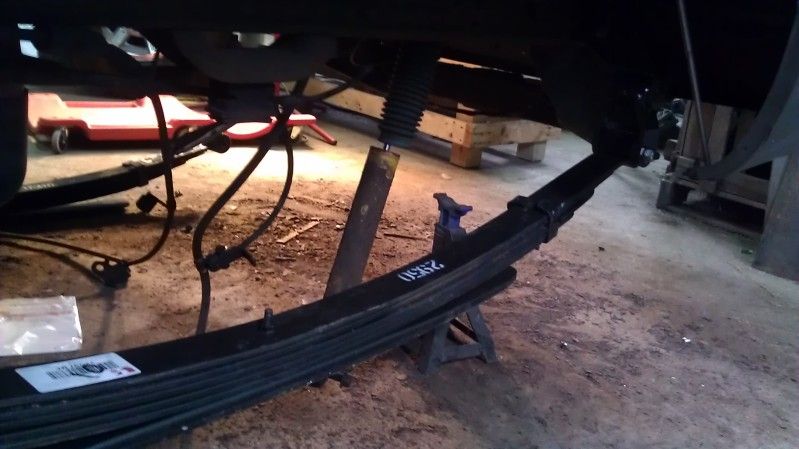

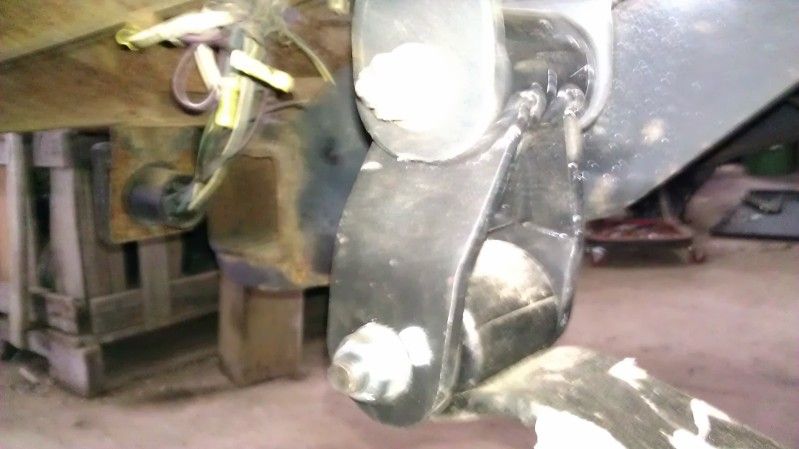

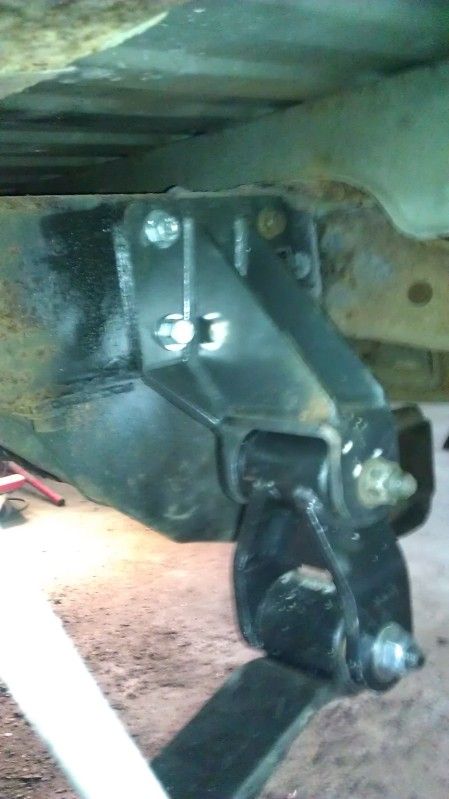

Rear hanger and shackle with no weight on it

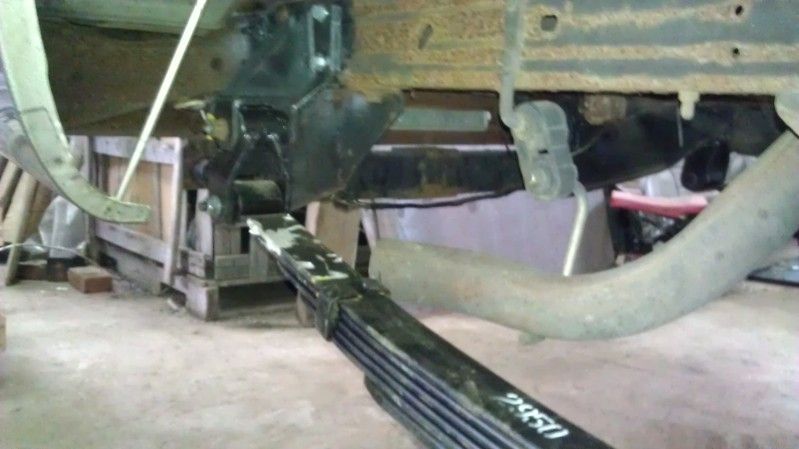

about 50% of the vehicle weight, I like the shackle angle.

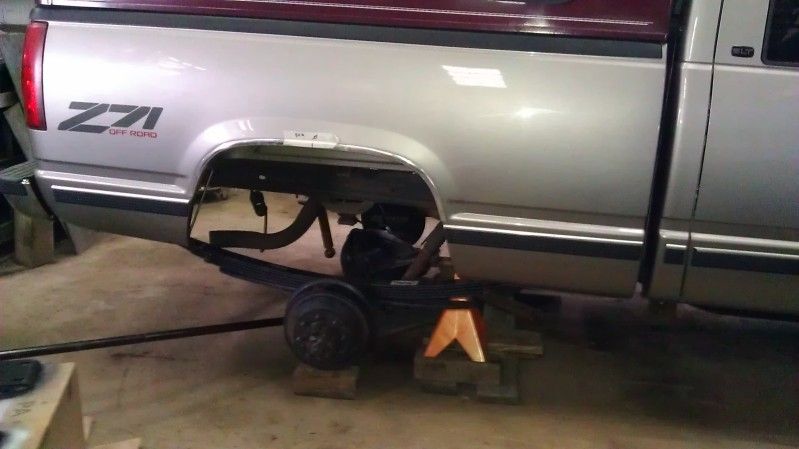

Axle under the truck, centered and pinion angle set. I also mocked up the shock mounts using the stock shocks, but they are too short so I am ordering up some Bilsteins for a 2-4" lifted truck.

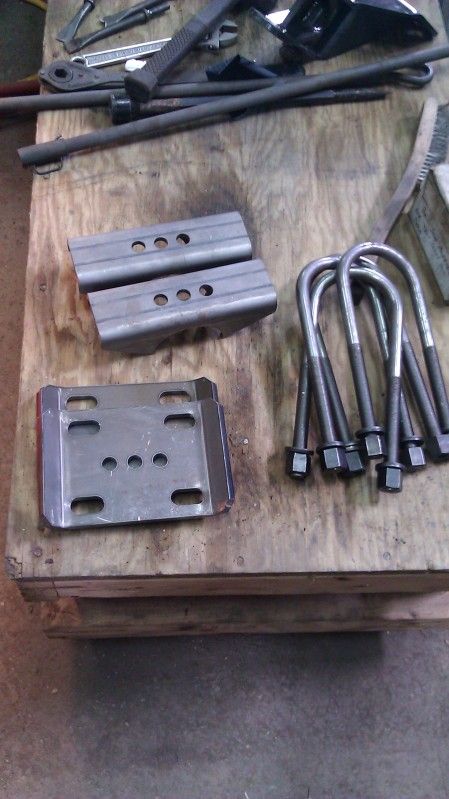

Some parts from Ruff Stuff and the U-bolts are from palmer spring in woburn.


I will be using the rear most mounting holes in the perch to re-center the rear tire in the wheel well. With the shackle reversal, it moves the axle forward slightly so this worked out well for me.

This is pretty much where I am. I need to tack everything up in the rear, pull the axle for finish welding, cleaning and paint. I also have a new diff covr, wheel cylinders and brake parts to throw at it.
